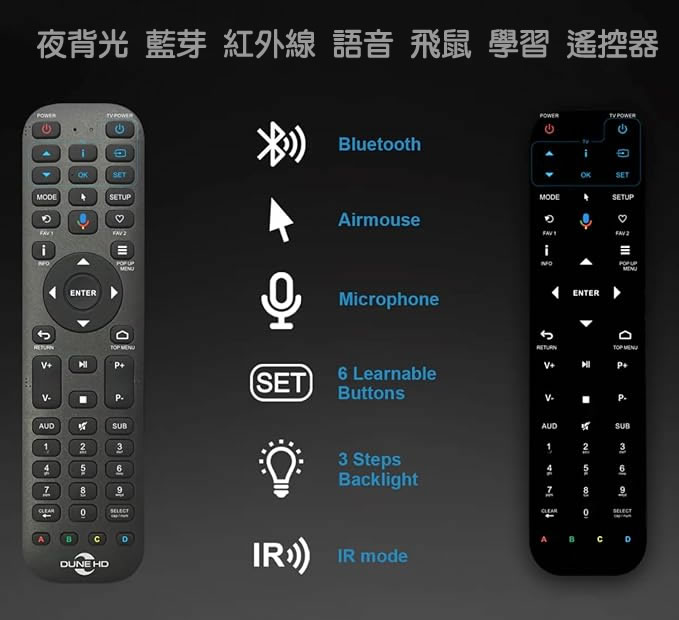

![]() 8K Dolby Vision & HDR10 Media Player with 3.5" HDD rack. High-performance 8K video quality. Dolby Vision. HDR10+. 8K decoding and output. Powerful Amlogic S928X media processor with 8GB RAM and 64GB storage. 1x 3.5” HDD rack. Gigabit Ethernet. Wi-Fi 6. Bluetooth 5.2. Dune HD Linux UI + Android 11. Full Blu-Ray Menus. Bluetooth+IR voice airmouse remote. 卡巴熊 客服Line生活圈:@trt8692a ![]() 已售完,補貨中(2218) |
![]() ![]() | ![]() ![]() |
8K Dolby Vision & HDR10+ Media Player with Android, 3.5" HDD rack, 8+64 GB memory, 1Gbit, WiFi6. New flagship line of Dune HD 8K models (next generation after RTD1619DR models). High-End video quality, 8K, AV1, YouTube 8K HDR, Dolby Vision VS10, HD audio, ISO 4K DV P7 FEL, AFR. ![]() ![]() ![]() Hardware Media processor: Amlogic S928X-K/J with Dolby Vision VS10 engine Operating memory: 8 GB Flash memory: 64 GB Ethernet: 10/100/1000 Mbit/s Wi-Fi: 802.11b/g/n/ac/ax (Wi-Fi 6), Dual Band 2.4+5 GHz, 2T2R Bluetooth: 5.2 USB ports: 3x USB 3.0 host + 1x USB 2.0 host Built-in HDD rack: 3.5" SATA HDD, up to 20 TB and more, hot swap HDMI output: HDMI 2.1a up to 8Kp60 HDR / 4Kp60 Dolby Vision, experimental support for 120 Hz (up to 4Kp120) Analog audio output: 2xRCA (stereo audio) S/PDIF output: Optical S/PDIF, Coaxial S/PDIF Front panel display: Multi-segment LED display HH:MM:SS Front panel power button: Yes IR receiver: Built-in IR receiver, supports Dune HD IR codes and Google IR codes IR input port: For connecting external IR receiver (not included); 3.5mm minijack, T-R-S: 5V-iR-GND, L=14.5mm Antennas: 2x external Wi-Fi antennas (detachable) + external BT antennas (non-detachable, because it is needed for Bluetooth remote) Remote: Bluetooth remote with microphone (voice search), AirMouse, IR learning Case: Metal Cooling: passive (entire case as a super-efficient heatsink) and active (quiet fan for extra HDD cooling) Dimensions (W x H x D): 215mm x 75mm x 184mm Power input: 12V DC IN (3A) Power supply: External, DC 12V (3A), AC 100-240V Video 8K video decoding: Yes, up to 8Kp60 HDR; 8K content can be downscaled to 4K, 1080p or lower output resolution 8K video output: Yes, up to 8Kp60 HDR; any content can be upscaled to 8K output resolution Video decoding: AV1, VP9 profile 2, H.265 (HEVC), H.264 (AVC), VC1, MPEG4, MPEG2, MPEG1 HDR formats: Dolby Vision, HDR10+, HDR10, HLG Dolby Vision VS10 engine: Yes Dolby Vision playback: Profiles 5, 7 (MEL and FEL), 8; various containers (ISO, movie folder structure, MKV, MP4, M2TS); DTDL (double-track double-layer), STDL (single-track double-layer), STSL (single-track single-layer). Double-track/double-layer video (profile 7 MEL, profile 7 FEL) is played with the use of data from both tracks/layers: video data from the first track/layer (with 10-bit color depth - the maximum color depth supported by OLED-panels in OLED TVs), extended Dolby Vision information (RPU metadata) from the second track/layer Dolby Vision output: LLDV (Low Latency Dolby Vision / Player-led Dolby Vision), STD DV (Standard Dolby Vision / TV-led Dolby Vision) Manual preference for LLDV or STD DV: Yes HDR mode (SDR/HDR/DV) switching: manual and automatic (according to played content) Framerates: all standard framerates including 23.976, 24.0, 25.0, 29.97, 30.0, 59.94, 60.0; experimental support for 120 Hz output Framerate and resolution switching: manual and automatic (according to played content) Video upscaling and downscaling: Yes 3D video support: Side-by-Side, Top-and-Bottom (TV requires manual switching into 3D mode) Video file formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, QT, ASF, WMV, ISO, movie folder structures BD playback: Lite (direct video playback without menu), Full Menu DVD-Video playback: Lite (direct video playback without menu) Other Features Subtitle formats: SRT (external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, external SUB/IDX), PGS (ISO, TS, MKV) Online subtitles: Automatically download subtitles from Internet Picture file formats: JPEG, PNG, BMP Photo viewer functions: Slideshow, transition effects, picture rotation, zoom, view playlist, repeat, shuffle Playlist file formats: M3U, PLS, CUE Playlist functions: Build playlist from selected folders and files, build playlist from selected playlist files, view playlist file, view current playlist, quickly jump to next/previous or selected playlist item, repeat, shuffle, playlist of photo files, playlist of audio files, playlist of video files, mixed playlist of audio and video files SMB client: Browse SMB servers/shares, manually connect to SMB share, directly access (read-write) and play files (SMB v1/2/3) NFS client: Browse NFS servers/shares, manually connect to NFS share, directly access (read-write) and play files SMB server: Share connected storage devices (internal HDD, USB HDD) and internal flash memory to local network via SMB protocol (SMB v1/2/3) iOS and Android mobile apps: Control the media player via the powerful Dune Control mobile application IP control: Use the built-in IP Control interface to integrate the media player into Smart Home and Home Automation systems (such as Control4 and Crestron) OS and Apps OS: Linux-based Dune HD OS + Android 11 OS kernel: 64-bit Android apps: 32-bit Support for HDDs larger than 16 TB: Yes Filesystems: FAT16/FAT32 (read-write), EXT2/EXT3/EXT4 (read-write), NTFS (read-write), exFAT (read-write), HFS/HFS+ (Mac OS Standard/Extended) (read-only), BTRFS (read-write) Widevine DRM: Widevine L1 Google Android TV certification: No Netflix certification: No Compatibility with Android apps and streaming services: Varies across particular apps and services, no guaranteed compatibility (no official Android TV certification, no official certifications by particular streaming services); the primary function of this media player is Hi-End media playback from HDD or NAS, support for Android apps and streaming services is additional non-primary functionality without guaranteed compatibility Functions requiring Internet connection: Some functions require Internet connection to verify Dune HD license. 1. Internet connection is required to play video files in the most advanced Dolby Vision format (DV Profile 7); w/o Internet, such files still can be played, but in HDR format (like in most media players of other brands). 2. Internet connection is required to play BD images with Full Menu; w/o Internet, such files still can be played, but with Lite Menu (like in most media players of other brands). In the future, the set of functions which require Internet connection may change. 包裝內容 Media player x1 Wi-Fi antenna x2 Bluetooth remote x1 電池 AAA x2 電源 12V 3A x1 HDMI cable 8K Ultra High Speed x1 快速安裝指南 x1 |
